AS · AS300T1

Flexistrut Channel Slotted (Type 300-2.5T)

Name: AS Flexistrut Channel Slotted (Type 300-2.5T)
Brand: Array Metal
SKU: AS300T1-3000-A2

AS300 profile with one row of slots for bolt-anywhere fixing.

Photos & drawings

Description

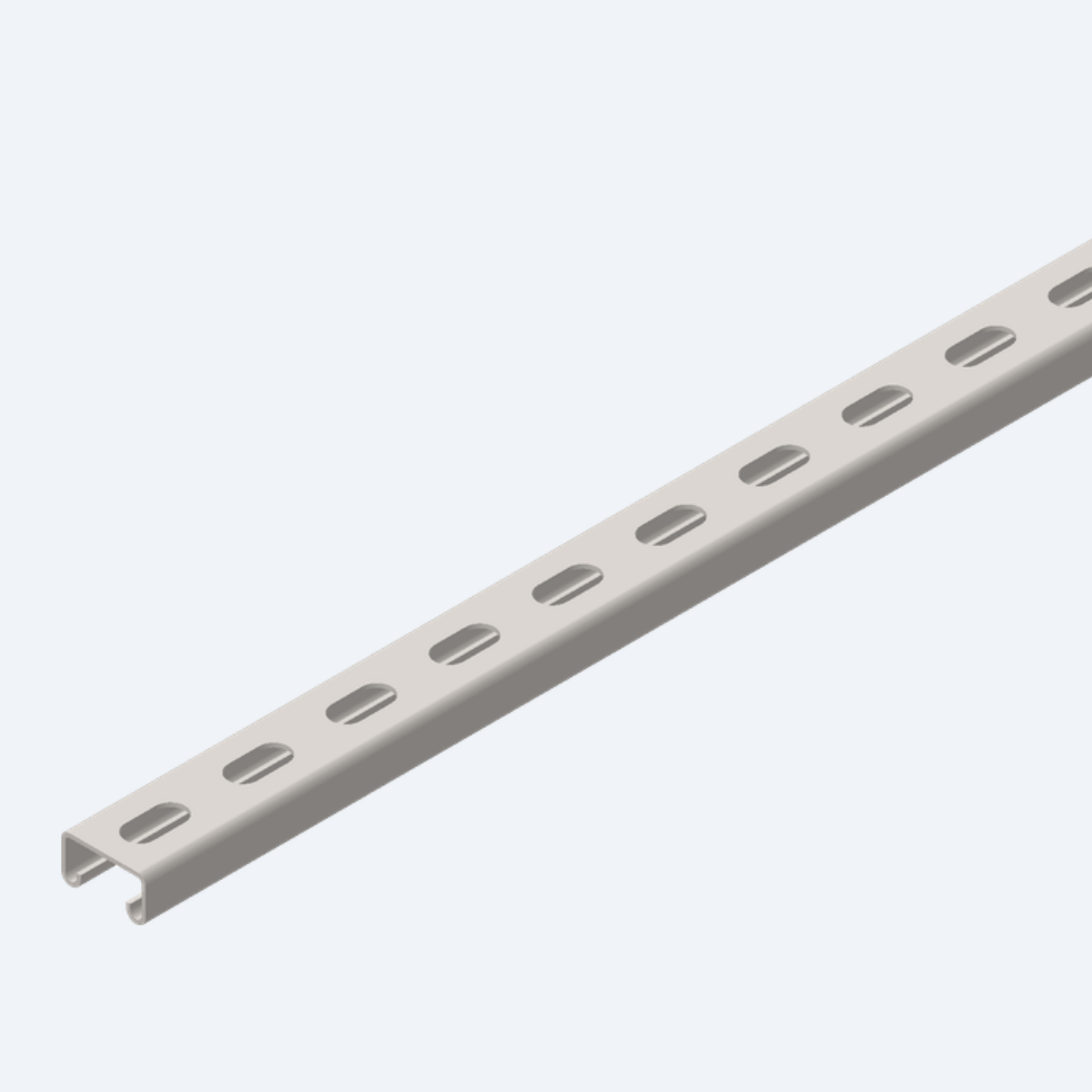

300-series Flexistrut channel with slotted holes along one face, so fixings can go anywhere along the channel.

Use it instead of the plain AS300 where bracket positions are set on site.

ExampleAS300T1-3000-A2Look up this code →

AS300T1Channel: Flexistrut Channel Slotted (Type 300-2.5T)

Which item it is.

Fixed for this item.

Published item codes

6 shown

Displaying 1–6 of 6 item codes

Per page

Part number	Thickness (mm)	Length (m)	Finish	Weight (kg)
AS300T1-3000-A2	2.5	3	SS304	6.00
AS300T1-3000-E	2.5	3	Epoxy on Mild Steel	5.92
AS300T1-3000-G	2.5	3	Hot-Dip Galvanized	5.92
AS300T1-6000-A2	2.5	6	SS304	12.00
AS300T1-6000-E	2.5	6	Epoxy on Mild Steel	11.85
AS300T1-6000-G	2.5	6	Hot-Dip Galvanized	11.85

Not in the list?

Characteristics

Model	AS300T1
Height	22 mm
Width	41 mm
Thickness	2.5 mm
Material	Stainless Steel 304, Epoxy on Mild Steel, Hot-Dip Galvanized
Finish	A2, E, G

GA drawings & documents

Document	Type	Applies to	Revision	Download
AS Flexistrut Channel Slotted (Type 300-2.5T) — GA Drawing	General arrangement (GA)	AS/AS300T1	—	↓ PDF

GA drawings and spec sheets are published per component and cover every width and length in the range. Project-specific GA sheets for a particular item code are issued against an enquiry reference.
