AS · AS102T1
Flexistrut Channel Slotted (Type 102)

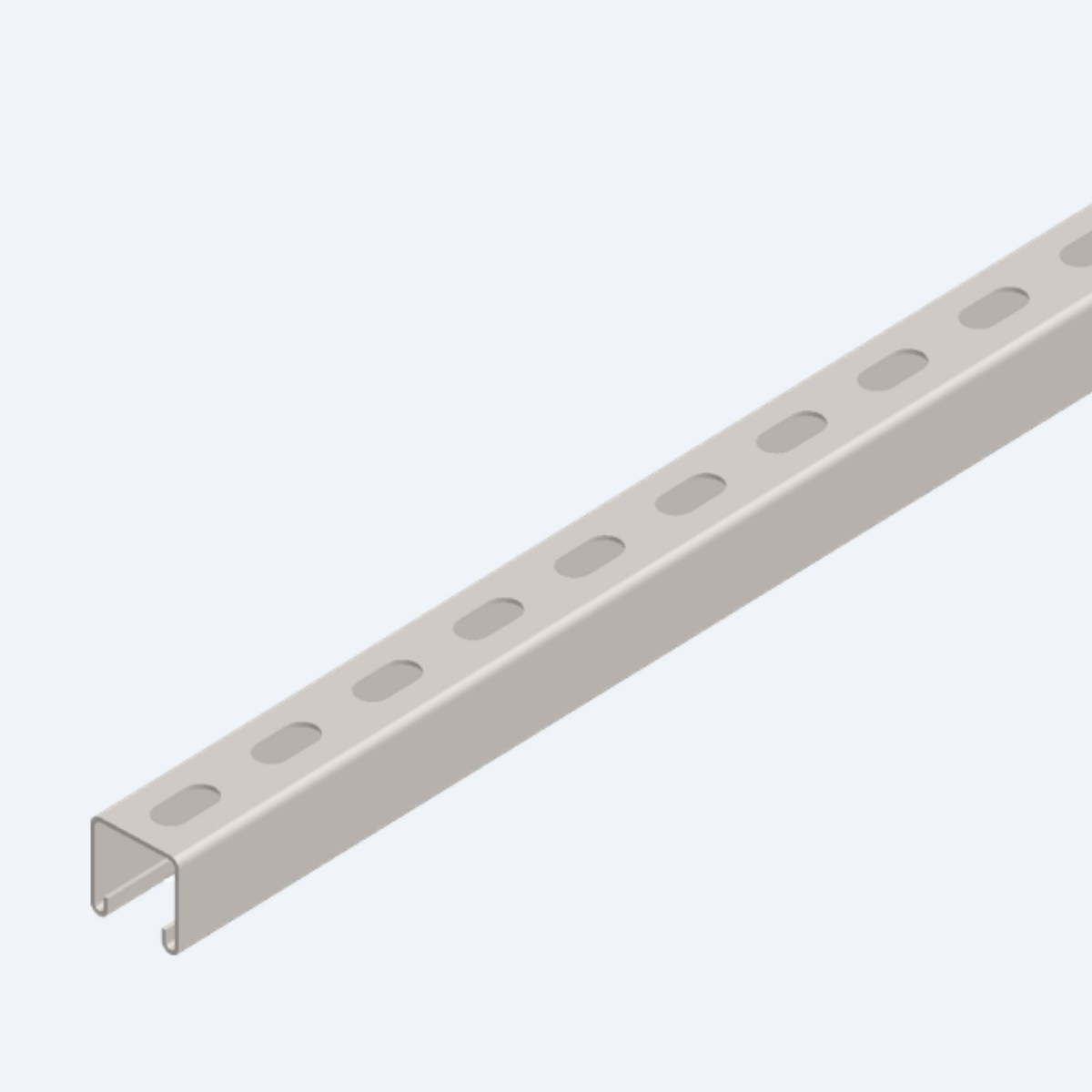

Slotted Flexistrut channel — Type 102, single row of slots.
Photos & drawings
Published item codes
| Part number | Thickness (mm) | Length (m) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| AS102T1-3000-A2 | 2 | 3 | SS304 | 6.62 | |
| AS102T1-3000-E | 2 | 3 | Epoxy on Mild Steel | 6.68 | |
| AS102T1-3000-G | 2 | 3 | Hot-Dip Galvanized | 6.68 | |
| AS102T1-6000-A2 | 2 | 6 | SS304 | 13.25 | |
| AS102T1-6000-E | 2 | 6 | Epoxy on Mild Steel | 13.37 | |
| AS102T1-6000-G | 2 | 6 | Hot-Dip Galvanized | 13.37 |
Not in the list?
Characteristics
| Model | AS102T1 |
|---|---|
| Height | 41 mm |
| Width | 41 mm |
| Thickness | 2 mm |
| Material | A2, E, G |
| Finish | A2, E, G |
GA drawings & documents
| Document | Type | Applies to | Revision | Download |
|---|---|---|---|---|
| AS Flexistrut Channel Slotted (Type 102) — GA Drawing | General arrangement (GA) | AS/AS102T1 | — |
GA drawings and spec sheets are published per component and cover every width and length in the range. Project-specific GA sheets for a particular item code are issued against an enquiry reference.
