AMT · T
Equal Tee

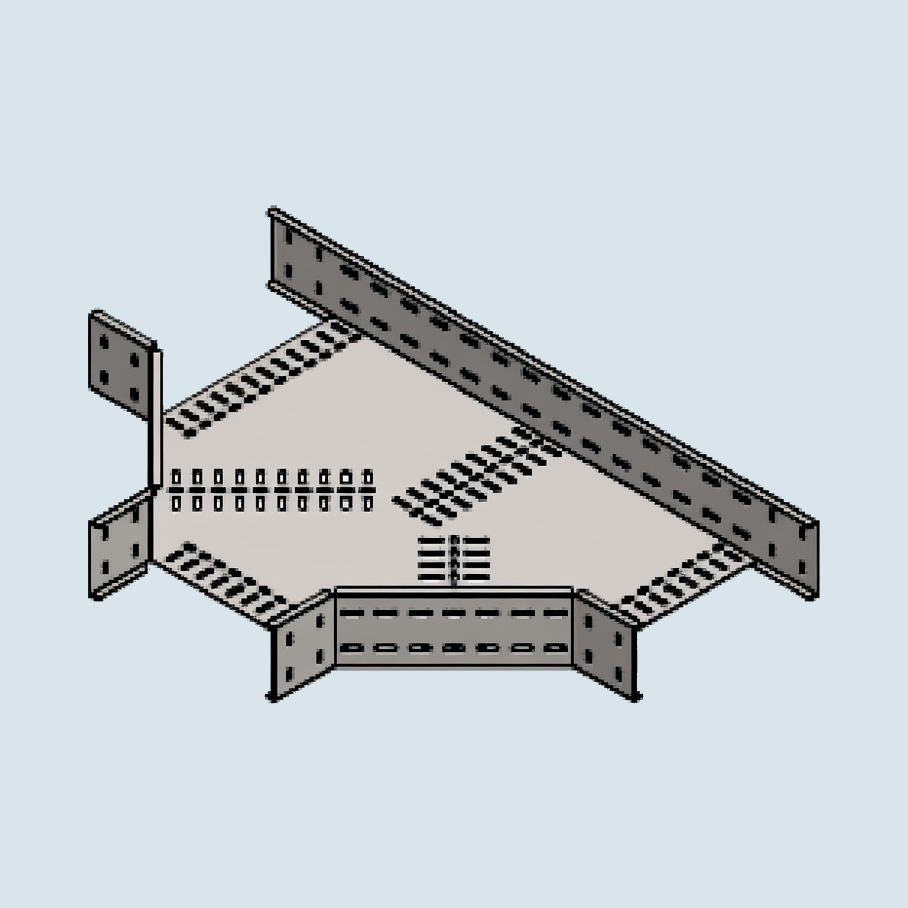

Three-way branch fitting joining tray runs of equal width.
Photos & drawings
Description
Three-way branch fitting for a cable tray run of equal width branching in two directions from a single junction, specified where a route requires a side branch without reducing the capacity of the main run.
Specified together with matching straight sections and, on enclosed runs, the corresponding tee cover, to maintain enclosure continuity at the branch.
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| AMT100-T-100-1.5-R30-A4 | 100 | 100 | 1.5 | SS316L | 8.49 | |
| AMT100-T-100-1.5-R30-G | 100 | 100 | 1.5 | Hot-Dip Galvanized | 9.86 | |
| AMT100-T-100-2-R30-A4 | 100 | 100 | 2 | SS316L | 11.32 | |
| AMT100-T-100-2-R30-G | 100 | 100 | 2 | Hot-Dip Galvanized | 13.15 | |
| AMT100-T-125-1.5-R30-A4 | 100 | 125 | 1.5 | SS316L | 9.01 | |
| AMT100-T-125-1.5-R30-G | 100 | 125 | 1.5 | Hot-Dip Galvanized | 10.42 | |
| AMT100-T-125-2-R30-A4 | 100 | 125 | 2 | SS316L | 12.01 | |
| AMT100-T-125-2-R30-G | 100 | 125 | 2 | Hot-Dip Galvanized | 13.90 | |
| AMT100-T-150-1.5-R30-A4 | 100 | 150 | 1.5 | SS316L | 9.55 | |
| AMT100-T-150-1.5-R30-G | 100 | 150 | 1.5 | Hot-Dip Galvanized | 11.00 |
Not in the list?
Characteristics
| Model | AMT100, AMT150, AMT200 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Radius | 300 mm |
| Material | A4, Hot-Dip Galvanized |
| Finish | A4, G |
