Equal Cross

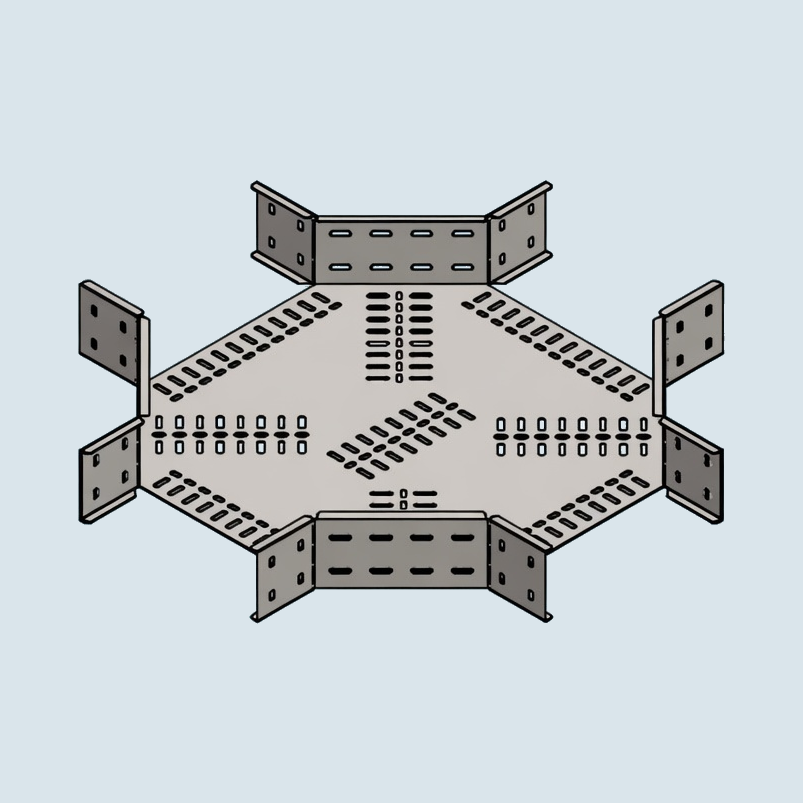

Four-way branch fitting joining tray runs of equal width.
Photos & drawings
Description
Four-way branch fitting joining cable tray runs of equal width at a single junction, specified where a route branches in two directions from one point.
Specified together with matching straight sections and, on enclosed runs, the corresponding cross cover, to maintain enclosure continuity at the junction.
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| AMT100-CP-100-1.5-R30-A4 | 100 | 100 | 1.5 | SS316L | 15.43 | |
| AMT100-CP-100-1.5-R30-G | 100 | 100 | 1.5 | Hot-Dip Galvanized | 15.24 | |
| AMT100-CP-100-2-R30-A4 | 100 | 100 | 2 | SS316L | 20.58 | |
| AMT100-CP-100-2-R30-G | 100 | 100 | 2 | Hot-Dip Galvanized | 20.32 | |
| AMT100-CP-125-1.5-R30-A4 | 100 | 125 | 1.5 | SS316L | 16.12 | |
| AMT100-CP-125-1.5-R30-G | 100 | 125 | 1.5 | Hot-Dip Galvanized | 15.92 | |
| AMT100-CP-125-2-R30-A4 | 100 | 125 | 2 | SS316L | 21.49 | |
| AMT100-CP-125-2-R30-G | 100 | 125 | 2 | Hot-Dip Galvanized | 21.22 | |
| AMT100-CP-150-1.5-R30-A4 | 100 | 150 | 1.5 | SS316L | 16.82 | |
| AMT100-CP-150-1.5-R30-G | 100 | 150 | 1.5 | Hot-Dip Galvanized | 16.61 |
Not in the list?
Characteristics
| Model | AMT100, AMT150, AMT200 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Radius | 300 mm |
| Material | A4, Hot-Dip Galvanized |
| Finish | A4, G |
