AMT · E45-LC
45° Horizontal Elbow Cover
Lipped cover for the 45 degree horizontal elbow.

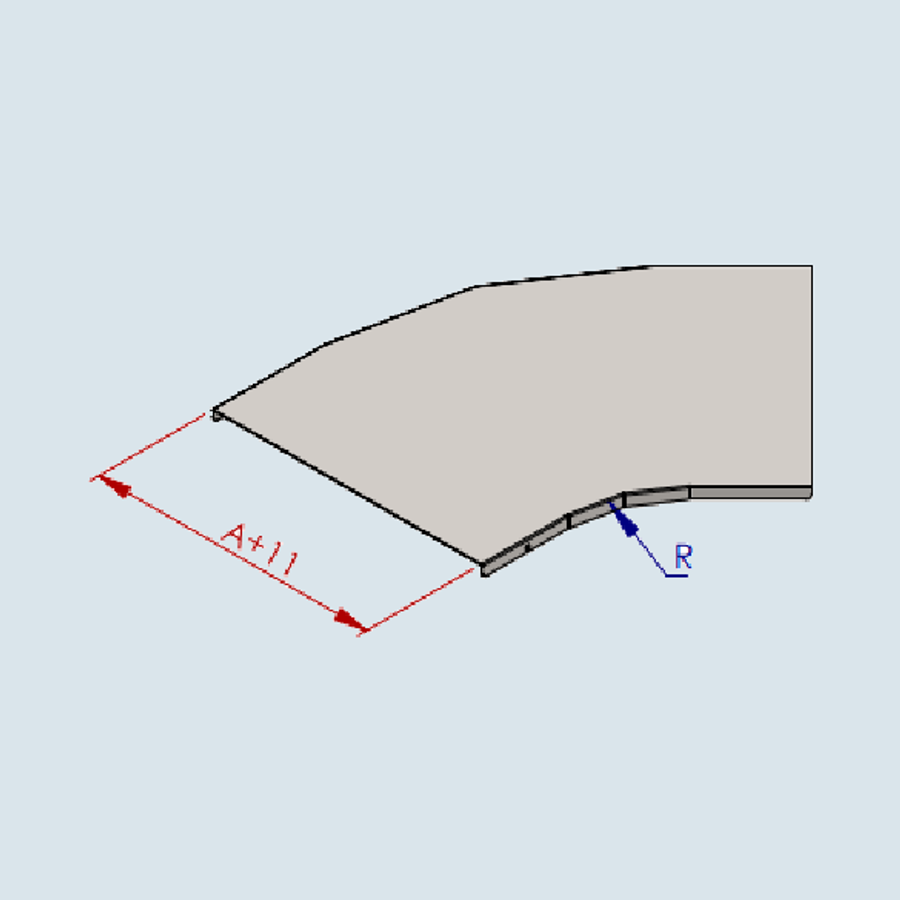

Photos & drawings
Description
Lipped cover for the 45° horizontal elbow, providing continuous enclosure over the bend and protecting cables from environmental exposure through the change of direction.
Installed directly over the corresponding elbow fitting; specify one cover per elbow within the same system and model.
Published item codes
| Part number | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|
| AMT-E45-LC-100-1.5-R30-A4 | 100 | 1.5 | SS316L | 2.74 | |
| AMT-E45-LC-100-1.5-R30-G | 100 | 1.5 | Hot-Dip Galvanized | 2.70 | |
| AMT-E45-LC-100-2-R30-A4 | 100 | 2 | SS316L | 3.65 | |
| AMT-E45-LC-100-2-R30-G | 100 | 2 | Hot-Dip Galvanized | 3.60 | |
| AMT-E45-LC-125-1.5-R30-A4 | 125 | 1.5 | SS316L | 3.00 | |
| AMT-E45-LC-125-1.5-R30-G | 125 | 1.5 | Hot-Dip Galvanized | 2.96 | |
| AMT-E45-LC-125-2-R30-A4 | 125 | 2 | SS316L | 4.00 | |
| AMT-E45-LC-125-2-R30-G | 125 | 2 | Hot-Dip Galvanized | 3.95 | |
| AMT-E45-LC-150-1.5-R30-A4 | 150 | 1.5 | SS316L | 3.27 | |
| AMT-E45-LC-150-1.5-R30-G | 150 | 1.5 | Hot-Dip Galvanized | 3.23 |
Not in the list?
Characteristics
| Model | AMT |
|---|---|
| Thickness | 1.5 / 2 mm |
| Radius | 300 mm |
| Material | A4, Hot-Dip Galvanized |
| Finish | A4, G |
