ALT · E90

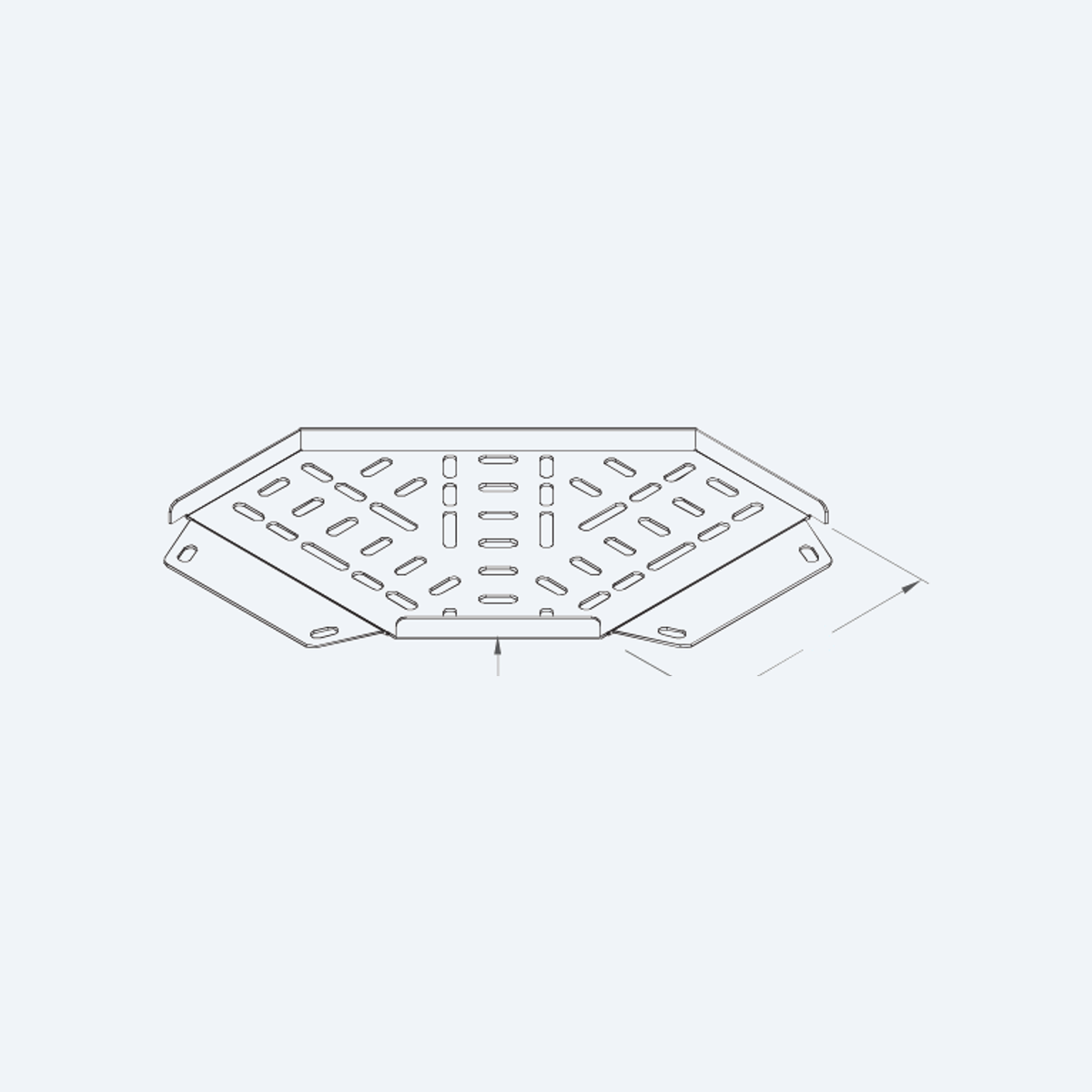

90° Horizontal Elbow
Horizontal elbow for a 90 degree change of direction.
Photos & drawings
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| ALT15-E90-50-1.5-R30-A4 | 15 | 50 | 1.5 | SS316L | 3.17 | |
| ALT15-E90-50-1.5-R30-G | 15 | 50 | 1.5 | Hot-Dip Galvanized | 3.13 | |
| ALT15-E90-50-2-R30-A4 | 15 | 50 | 2 | SS316L | 4.23 | |
| ALT15-E90-50-2-R30-G | 15 | 50 | 2 | Hot-Dip Galvanized | 4.17 | |
| ALT15-E90-100-1.5-R30-A4 | 15 | 100 | 1.5 | SS316L | 3.82 | |
| ALT15-E90-100-1.5-R30-G | 15 | 100 | 1.5 | Hot-Dip Galvanized | 3.77 | |
| ALT15-E90-100-2-R30-A4 | 15 | 100 | 2 | SS316L | 5.09 | |
| ALT15-E90-100-2-R30-G | 15 | 100 | 2 | Hot-Dip Galvanized | 5.03 | |
| ALT15-E90-125-1.5-R30-A4 | 15 | 125 | 1.5 | SS316L | 4.16 | |
| ALT15-E90-125-1.5-R30-G | 15 | 125 | 1.5 | Hot-Dip Galvanized | 4.11 |
Not in the list?
Characteristics
| Model | ALT15, ALT25 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Radius | 300 mm |
| Material | A4, G |
| Finish | A4, G |
