ALT

ALT Cable Tray

Shallow light-duty tray for indoor runs, in hot-dip galvanized and stainless 316L.

Rail heights
15 / 25 mm
Widths
50, 75, 100, 125, 150, 200, 250, 300… mm
Thickness
1.5 / 2 mm
Lengths
3000 mm
Finish
A4, G
Published codes
1,272

Products

Displaying 1–14 of 14 products · All ALT part number options →

System overview

Shallow light-duty tray for indoor runs, in hot-dip galvanized and stainless 316L.

1×
Isometric cable tray run — straights, elbows, tees, crosses, reducers, risers and splice plates, with the covers that fit them.

Tray or fittingIts cover

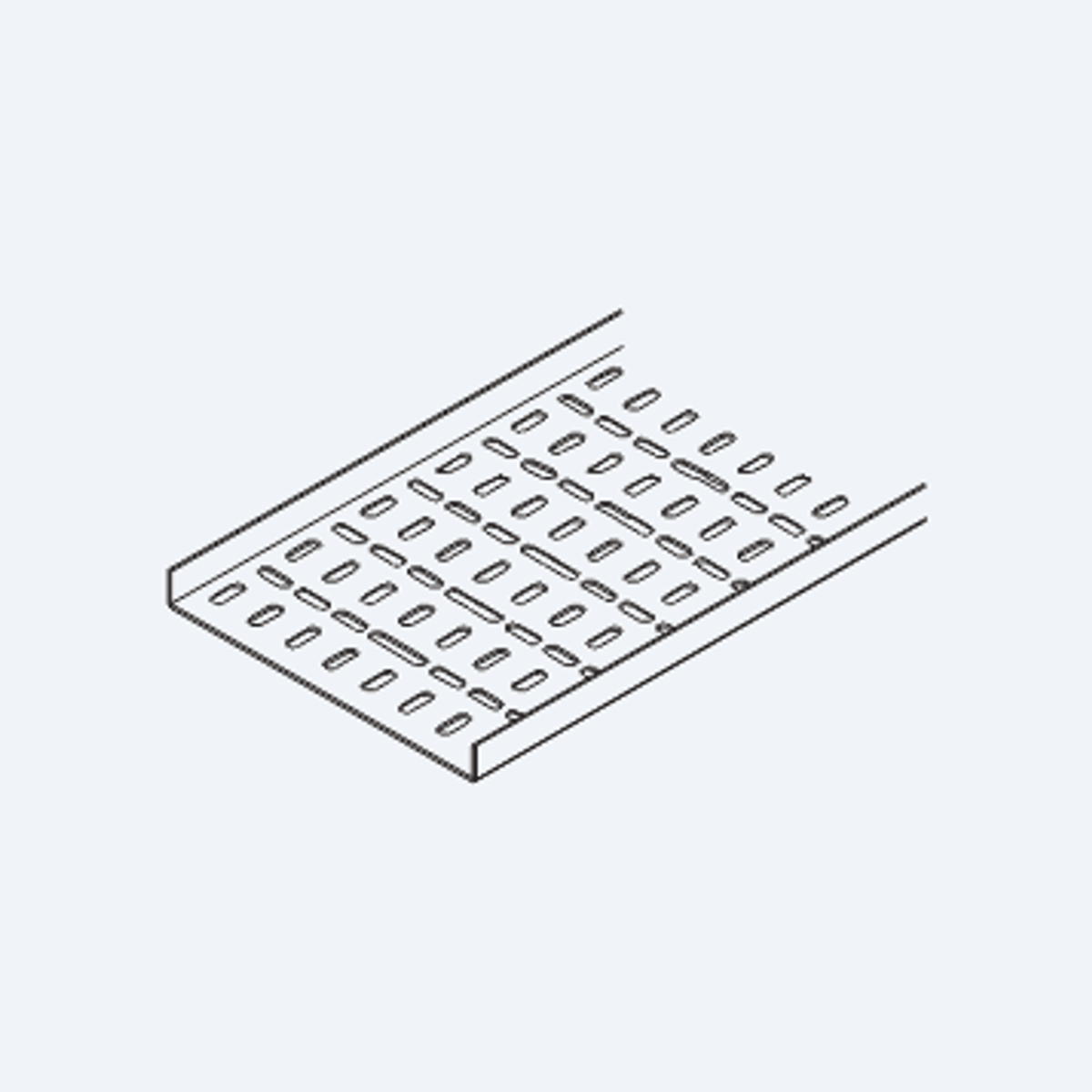

  1. StraightStraight Lipped Cover
  2. 90 Elbow90° elbow cover
  3. 45 Elbow45° elbow cover
  4. Tee PieceTee cover
  5. Cross PieceCross cover

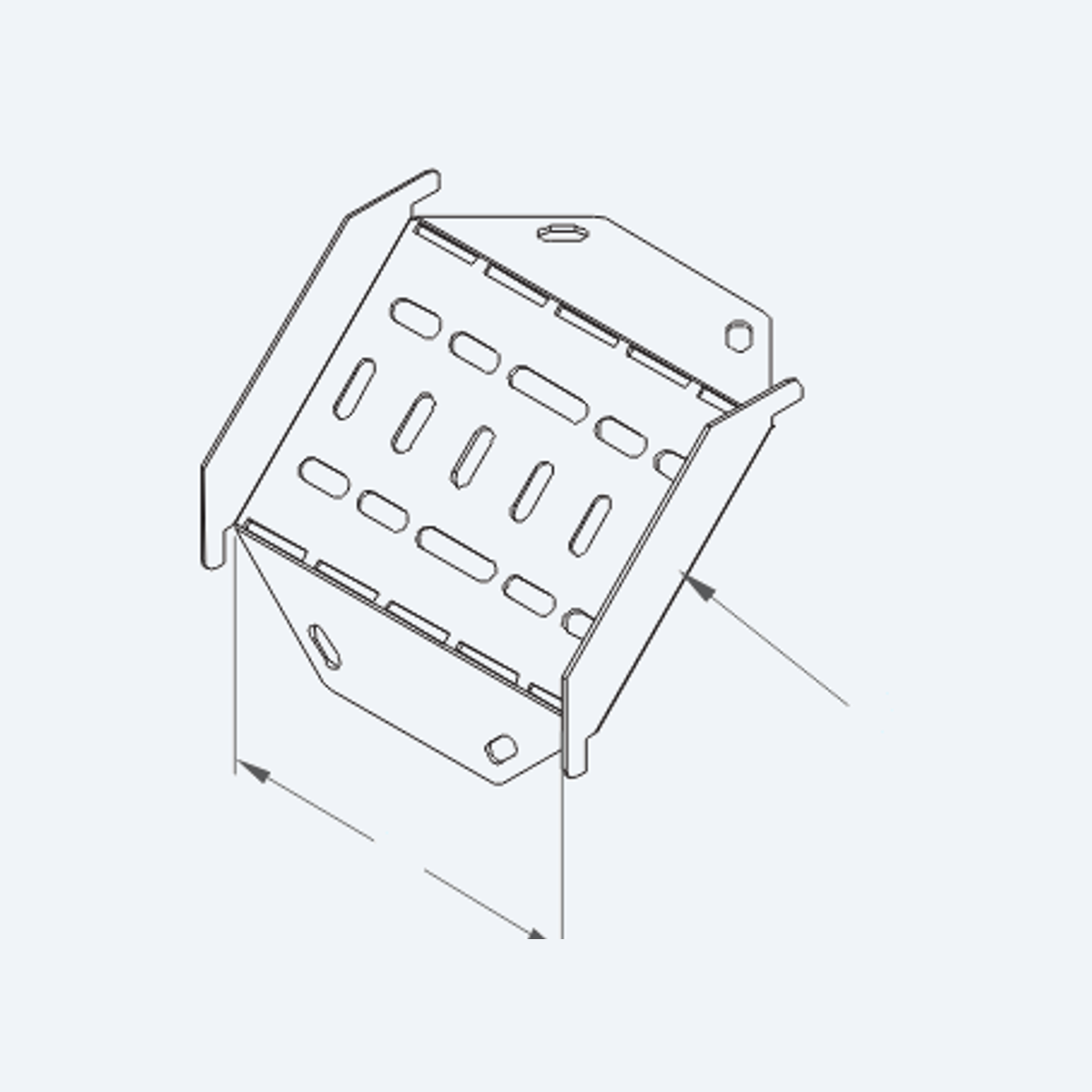

  6. 90 Outside Riser90 Outside Riser Lipped Cover

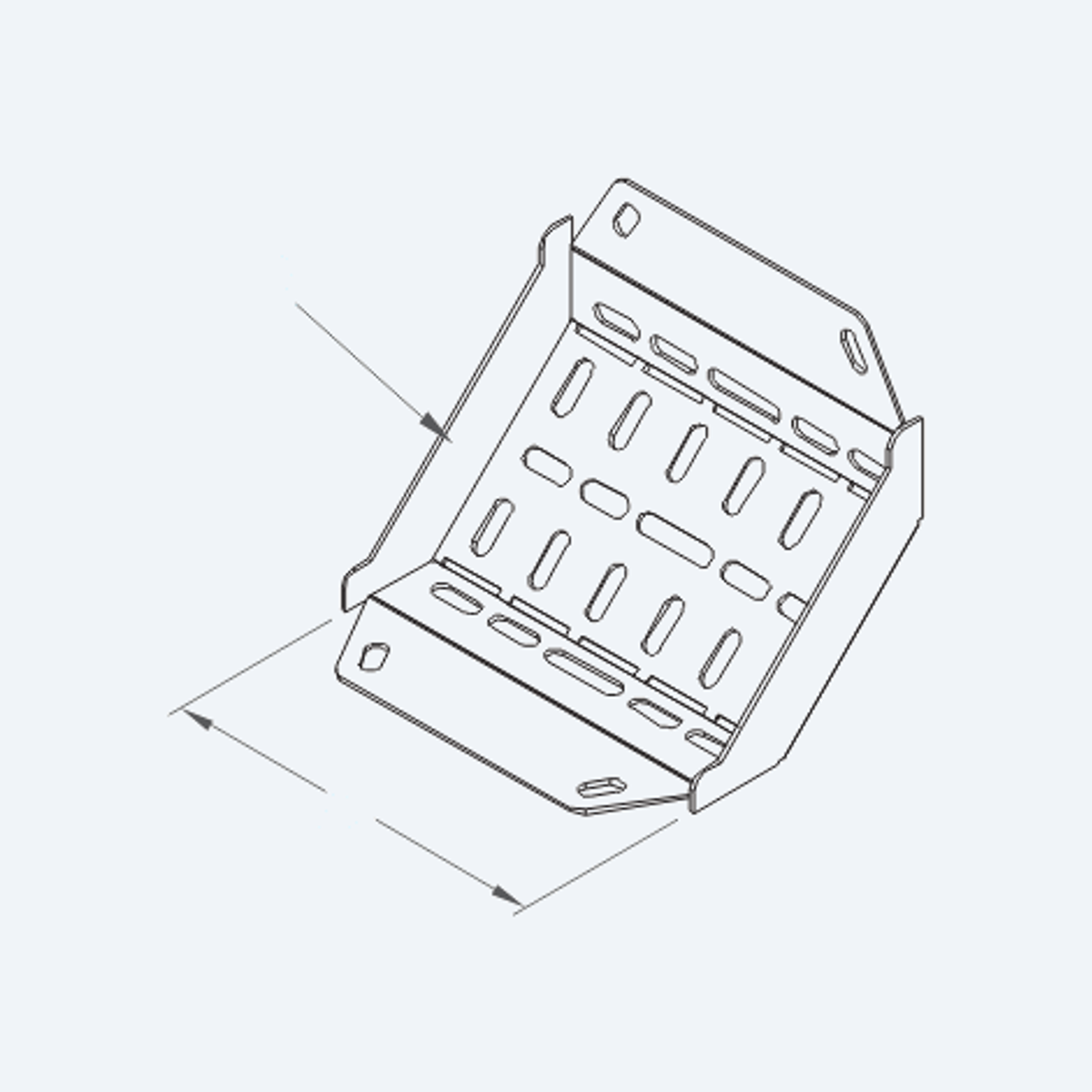

  7. 90 Inside RiserInside riser cover
  8. Centre reducerOn requestCentre reducer coverOn request
  9. Left reducerOn requestLeft reducer coverOn request
  10. Right reducerOn requestRight reducer coverOn request
  11. Splice plate
Standard components of the system. A filled number is the tray or fitting; the same number outlined is the cover that fits it. Hover a number or a name to pick it out. Zoom in and drag to look closer.

Data

Load ratings for ALT are not published yet. Contact our engineering team for interim figures.

Design details

ALTARTAMT

Three tray profiles

ALT is a shallow flanged tray for light indoor runs. ART adds taller sides finished with a rolled top edge that stiffens the side and keeps cable sheaths off a cut edge. AMT is the deep return-flange profile for heavier fills.

In-built splice plates

In-built splice plates

Bends, tees and crosses carry their splice built into the side walls, so a fitting laps over the tray and bolts up with no separate splice plates. Straight lengths are joined with standard splice plates.

Test reports & certification

  • Test report
    Cable Tray MS IEC61537:2007 cover

    Cable Tray MS IEC61537:2007

    2026-05

  • Test report
    DNV Verification - Cable Ladder & Tray cover

    DNV Verification - Cable Ladder & Tray

    2017-08

  • Test report
    SIRIM NEMA VE1 cover

    SIRIM NEMA VE1

    2017-08

Product test reports and certificates for this system. Company certifications are listed under Certifications & standards.
