ALT · E45
45° Horizontal Elbow
Horizontal elbow for a 45 degree change of direction.

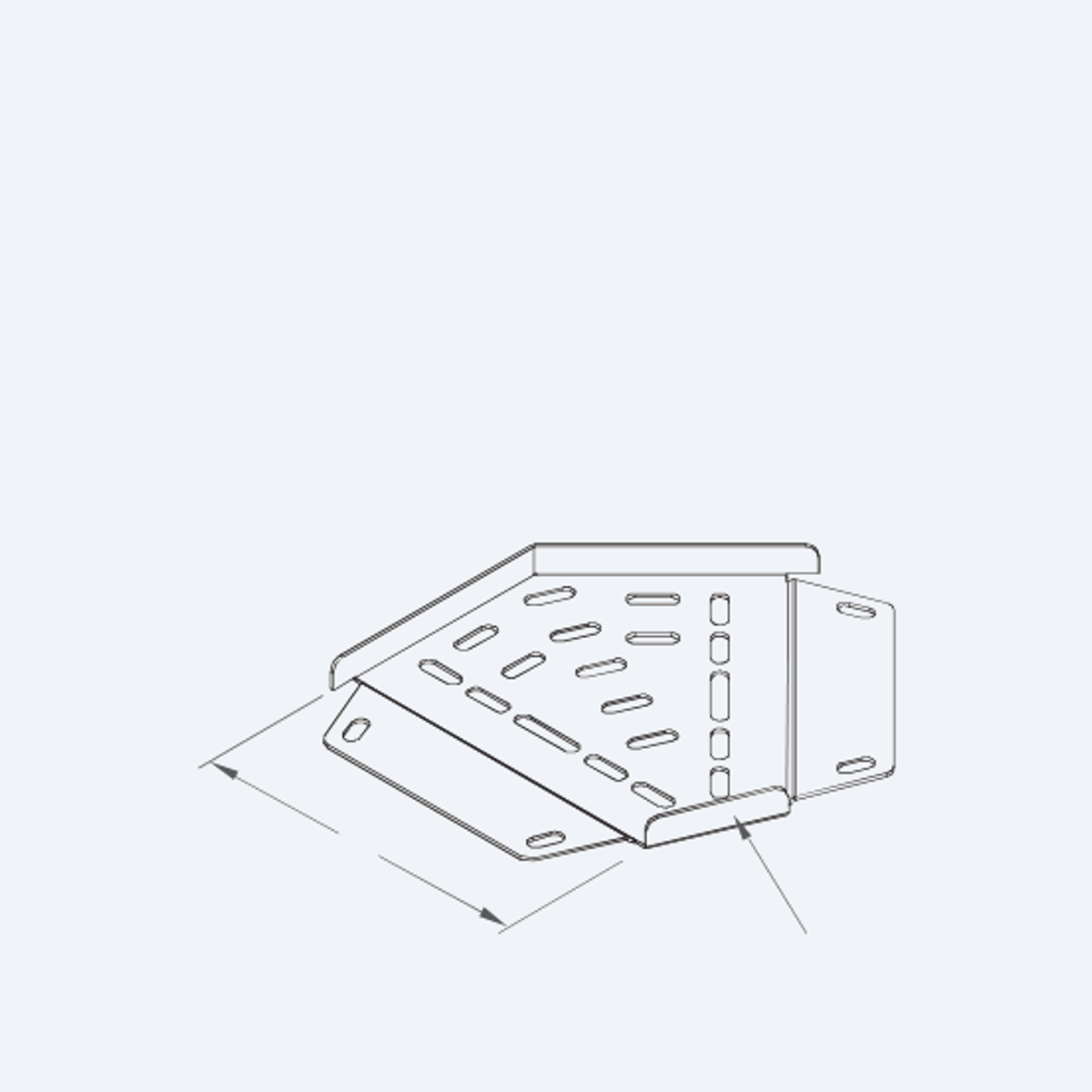

Photos & drawings
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| ALT15-E45-50-1.5-R30-A4 | 15 | 50 | 1.5 | SS316L | 2.54 | |
| ALT15-E45-50-1.5-R30-G | 15 | 50 | 1.5 | Hot-Dip Galvanized | 2.50 | |
| ALT15-E45-50-2-R30-A4 | 15 | 50 | 2 | SS316L | 3.38 | |
| ALT15-E45-50-2-R30-G | 15 | 50 | 2 | Hot-Dip Galvanized | 3.34 | |
| ALT15-E45-100-1.5-R30-A4 | 15 | 100 | 1.5 | SS316L | 3.05 | |
| ALT15-E45-100-1.5-R30-G | 15 | 100 | 1.5 | Hot-Dip Galvanized | 3.02 | |
| ALT15-E45-100-2-R30-A4 | 15 | 100 | 2 | SS316L | 4.07 | |
| ALT15-E45-100-2-R30-G | 15 | 100 | 2 | Hot-Dip Galvanized | 4.02 | |
| ALT15-E45-125-1.5-R30-A4 | 15 | 125 | 1.5 | SS316L | 3.33 | |
| ALT15-E45-125-1.5-R30-G | 15 | 125 | 1.5 | Hot-Dip Galvanized | 3.29 |
Not in the list?
Characteristics
| Model | ALT15, ALT25 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Radius | 300 mm |
| Material | A4, G |
| Finish | A4, G |
