AZL · ST
Straight

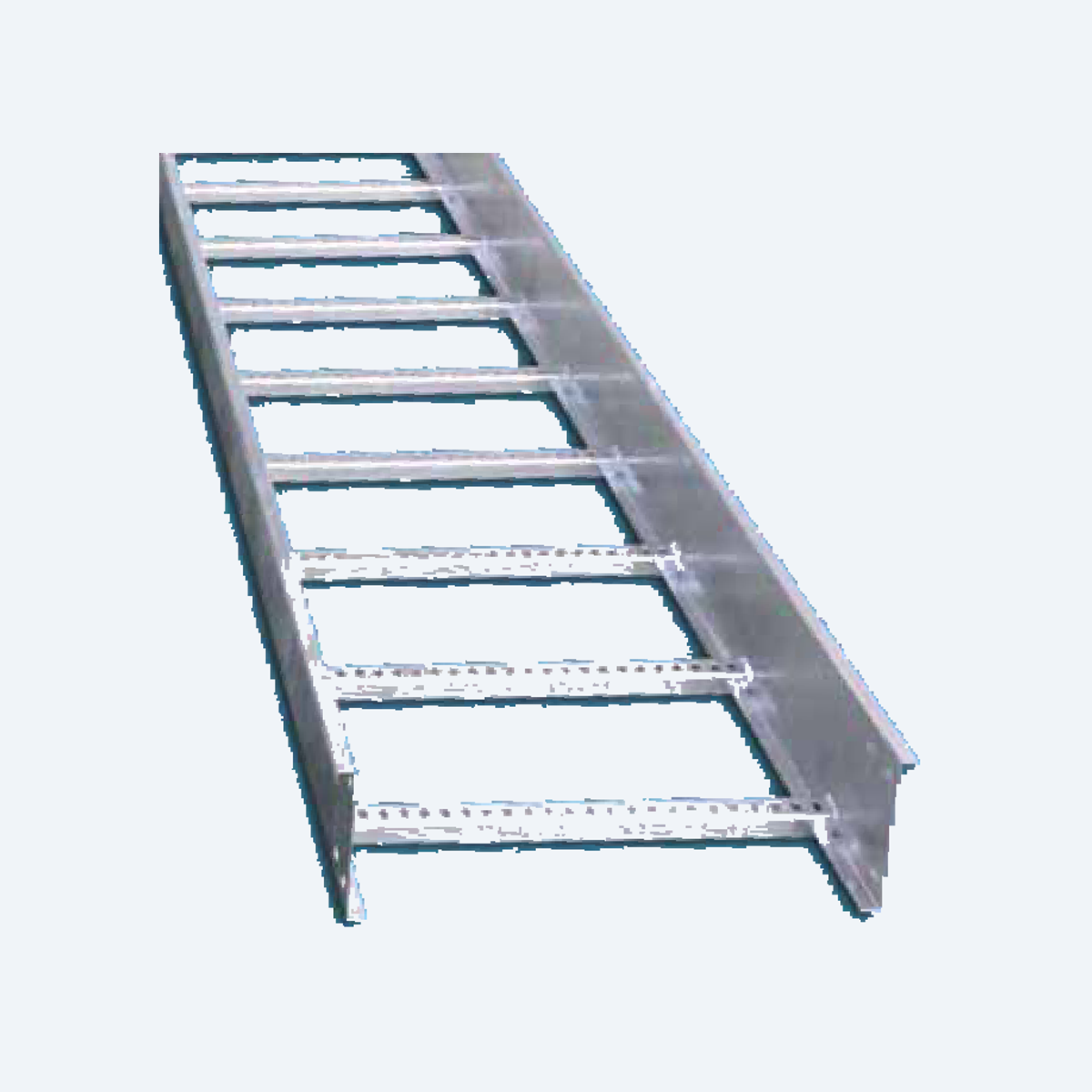

Straight AZL cable ladder section for level or inclined runs.
Photos & drawings
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| AZL100-ST-100-1.5-3-G | 100 | 100 | 1.5 | Hot-Dip Galvanized | 12.32 | |
| AZL100-ST-100-2-3-G | 100 | 100 | 2 | Hot-Dip Galvanized | 16.43 | |
| AZL100-ST-125-1.5-3-G | 100 | 125 | 1.5 | Hot-Dip Galvanized | 12.56 | |
| AZL100-ST-125-2-3-G | 100 | 125 | 2 | Hot-Dip Galvanized | 16.75 | |
| AZL100-ST-150-1.5-3-G | 100 | 150 | 1.5 | Hot-Dip Galvanized | 12.80 | |
| AZL100-ST-150-2-3-G | 100 | 150 | 2 | Hot-Dip Galvanized | 17.06 | |
| AZL100-ST-200-1.5-3-G | 100 | 200 | 1.5 | Hot-Dip Galvanized | 13.27 | |
| AZL100-ST-200-2-3-G | 100 | 200 | 2 | Hot-Dip Galvanized | 17.70 | |
| AZL100-ST-300-1.5-3-G | 100 | 300 | 1.5 | Hot-Dip Galvanized | 14.22 | |
| AZL100-ST-300-2-3-G | 100 | 300 | 2 | Hot-Dip Galvanized | 18.96 |
Not in the list?
Characteristics
| Model | AZL100, AZL125, AZL150 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Material | G |
| Finish | G |
