AZL · HDCA

Hold-Down Clip (Type A)

Name: AZL Hold-Down Clip (Type A)
Brand: Array Metal
SKU: AZL100-HDCA-1.5-G

Hold-down clamp type A, fixing an AZL ladder to the support.

Photos & drawings

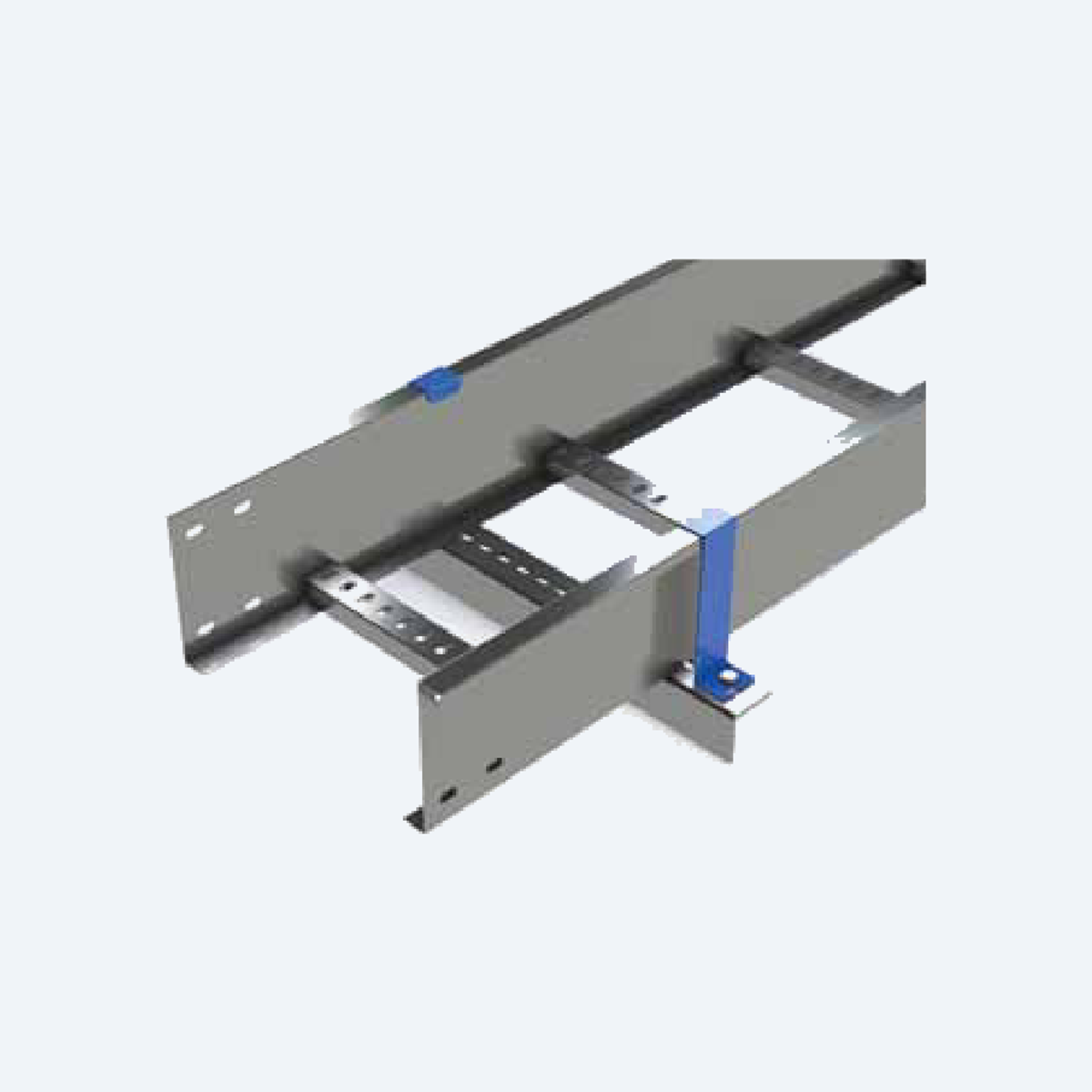

Hold-down clip, type A, that fixes an AZL ladder to its support steel.

ExampleAZL100-HDCA-1.5-GLook up this code →

AZL100System and height: AZL system, 100 mm height

System letters, then the height in millimetres.

Published in 3 options. Select one to change the code.

6 shown

Displaying 1–6 of 6 item codes

Per page

Part number	Height (mm)	Thickness (mm)	Finish	Weight (kg)
AZL100-HDCA-1.5-G	100	1.5	Hot-Dip Galvanized	0.09
AZL100-HDCA-2-G	100	2	Hot-Dip Galvanized	0.11
AZL125-HDCA-1.5-G	125	1.5	Hot-Dip Galvanized	0.10
AZL125-HDCA-2-G	125	2	Hot-Dip Galvanized	0.13
AZL150-HDCA-1.5-G	150	1.5	Hot-Dip Galvanized	0.11
AZL150-HDCA-2-G	150	2	Hot-Dip Galvanized	0.15

Not in the list?
