Expansion Splice Plate

Name: AZL Expansion Splice Plate
Brand: Array Metal
SKU: AZL100-ESP-1.5-G

Expansion splice plate allowing thermal movement in an AZL run.

Photos & drawings

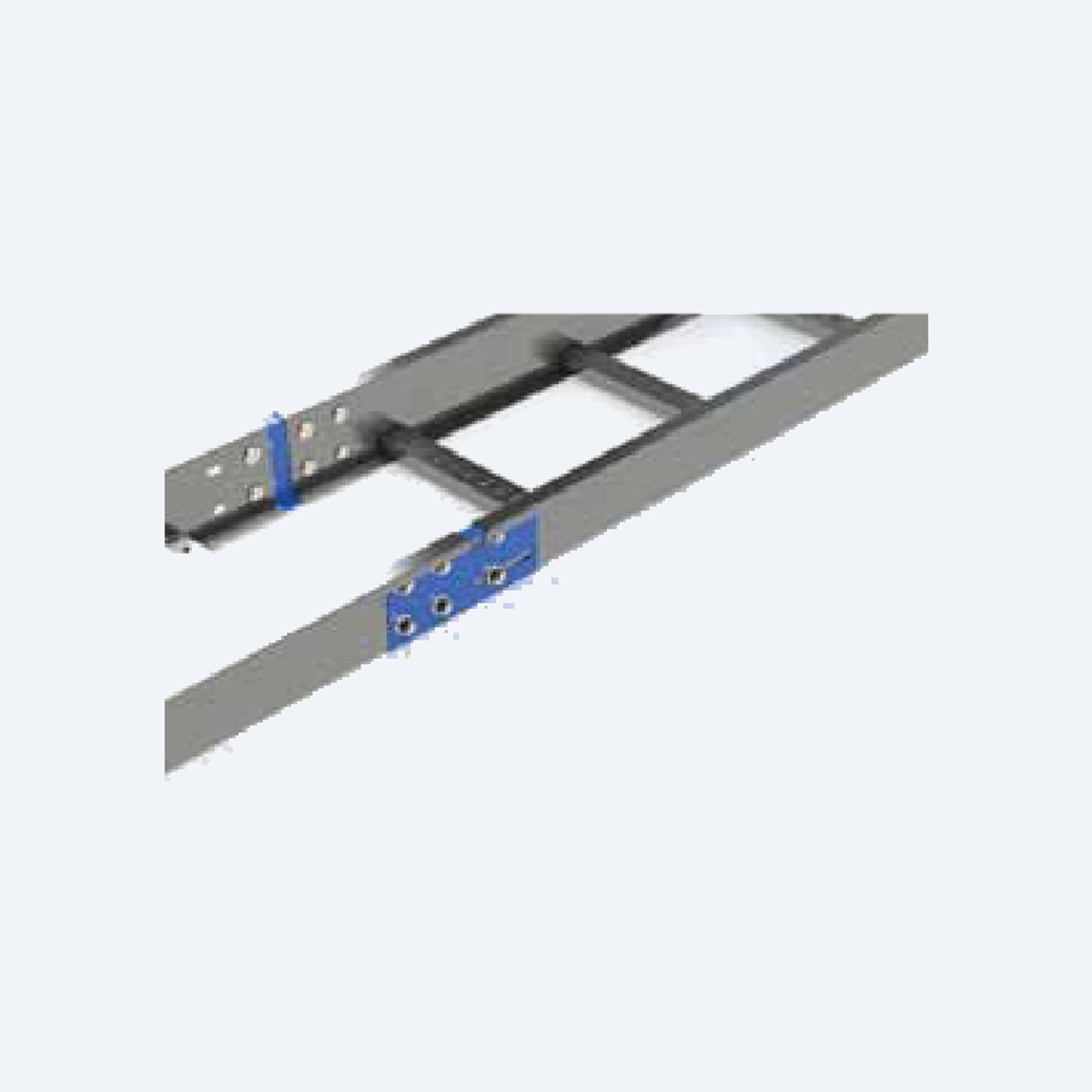

Expansion splice plate. Lets a long AZL run expand and contract with temperature.

Fit it at the expansion joints shown on the layout drawing, in place of a standard splice plate.

ExampleAZL100-ESP-1.5-GLook up this code →

AZL100System and height: AZL system, 100 mm height

System letters, then the height in millimetres.

Published in 3 options. Select one to change the code.

6 shown

Displaying 1–6 of 6 item codes

Per page

Part number	Height (mm)	Thickness (mm)	Finish	Weight (kg)
AZL100-ESP-1.5-G	100	1.5	Hot-Dip Galvanized	0.45
AZL100-ESP-2-G	100	2	Hot-Dip Galvanized	0.60
AZL125-ESP-1.5-G	125	1.5	Hot-Dip Galvanized	0.53
AZL125-ESP-2-G	125	2	Hot-Dip Galvanized	0.70
AZL150-ESP-1.5-G	150	1.5	Hot-Dip Galvanized	0.61
AZL150-ESP-2-G	150	2	Hot-Dip Galvanized	0.81
