AZL · OR45-LC

45° Outside Riser Lipped Cover

Name: AZL 45° Outside Riser Lipped Cover
Brand: Array Metal
SKU: AZL100-OR45-LC-100-1.5-R30-G

Lipped cover for an AZL 45 degree outside riser.

Photos & drawings

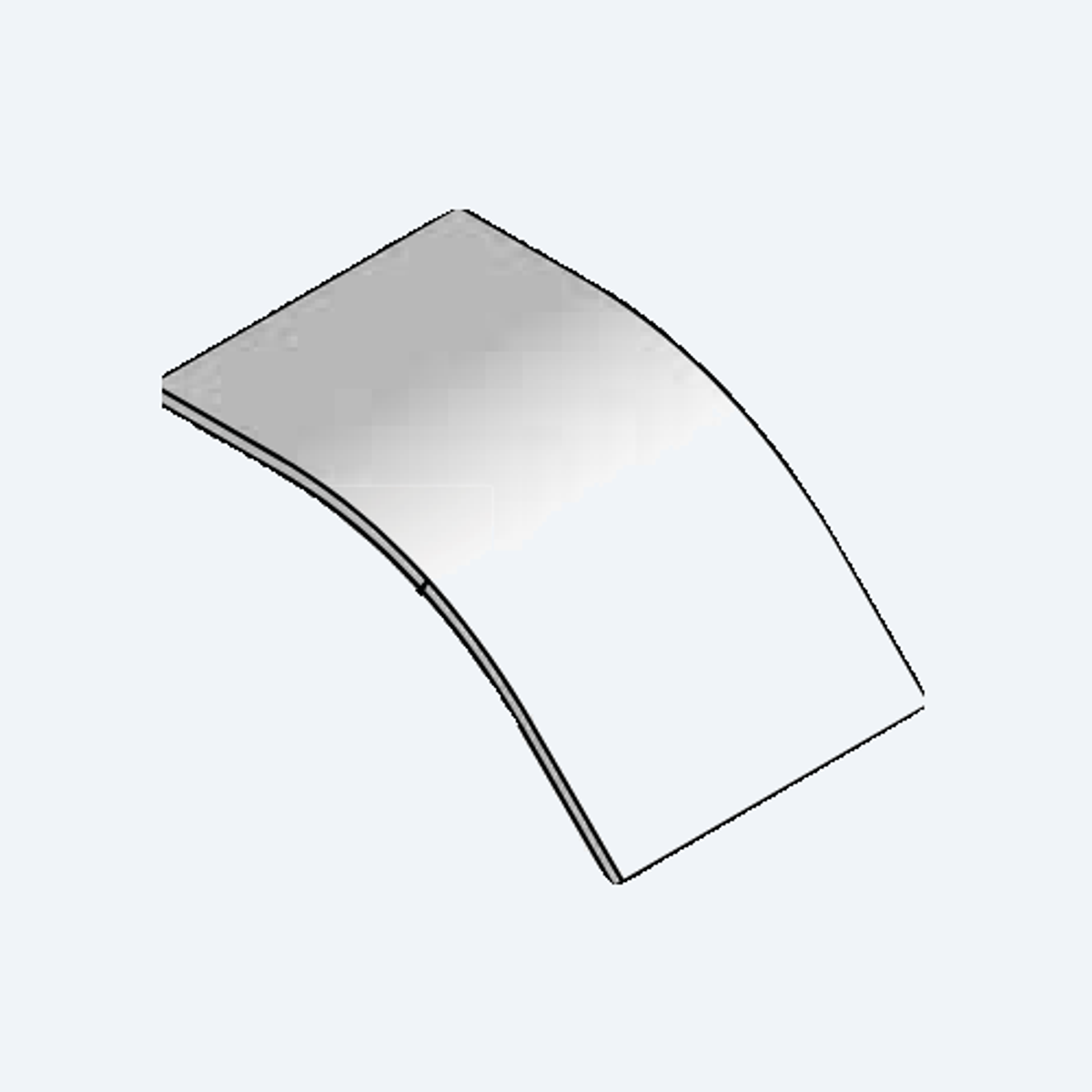

Lipped cover for the AZL 45° outside riser. One cover per riser, same model and width.

ExampleAZL100-OR45-LC-100-1.5-R30-GLook up this code →

AZL100System and height: AZL system, 100 mm height

System letters, then the height in millimetres.

Published in 3 options. Select one to change the code.

72 shown

Displaying 1–10 of 72 item codes

Per page

Part number	Height (mm)	Width (mm)	Thickness (mm)	Finish	Weight (kg)
AZL100-OR45-LC-100-1.5-R30-G	100	100	1.5	Hot-Dip Galvanized	1.14
AZL100-OR45-LC-100-2-R30-G	100	100	2	Hot-Dip Galvanized	1.52
AZL100-OR45-LC-125-1.5-R30-G	100	125	1.5	Hot-Dip Galvanized	1.30
AZL100-OR45-LC-125-2-R30-G	100	125	2	Hot-Dip Galvanized	1.74
AZL100-OR45-LC-150-1.5-R30-G	100	150	1.5	Hot-Dip Galvanized	1.46
AZL100-OR45-LC-150-2-R30-G	100	150	2	Hot-Dip Galvanized	1.95
AZL100-OR45-LC-200-1.5-R30-G	100	200	1.5	Hot-Dip Galvanized	1.78
AZL100-OR45-LC-200-2-R30-G	100	200	2	Hot-Dip Galvanized	2.37
AZL100-OR45-LC-300-1.5-R30-G	100	300	1.5	Hot-Dip Galvanized	2.41
AZL100-OR45-LC-300-2-R30-G	100	300	2	Hot-Dip Galvanized	3.22

Not in the list?
