AZL · IR45

45° Inside Riser

Name: AZL 45° Inside Riser
Brand: Array Metal
SKU: AZL100-IR45-100-1.5-R30-G

Vertical riser for a 45 degree inside change of elevation.

Photos & drawings

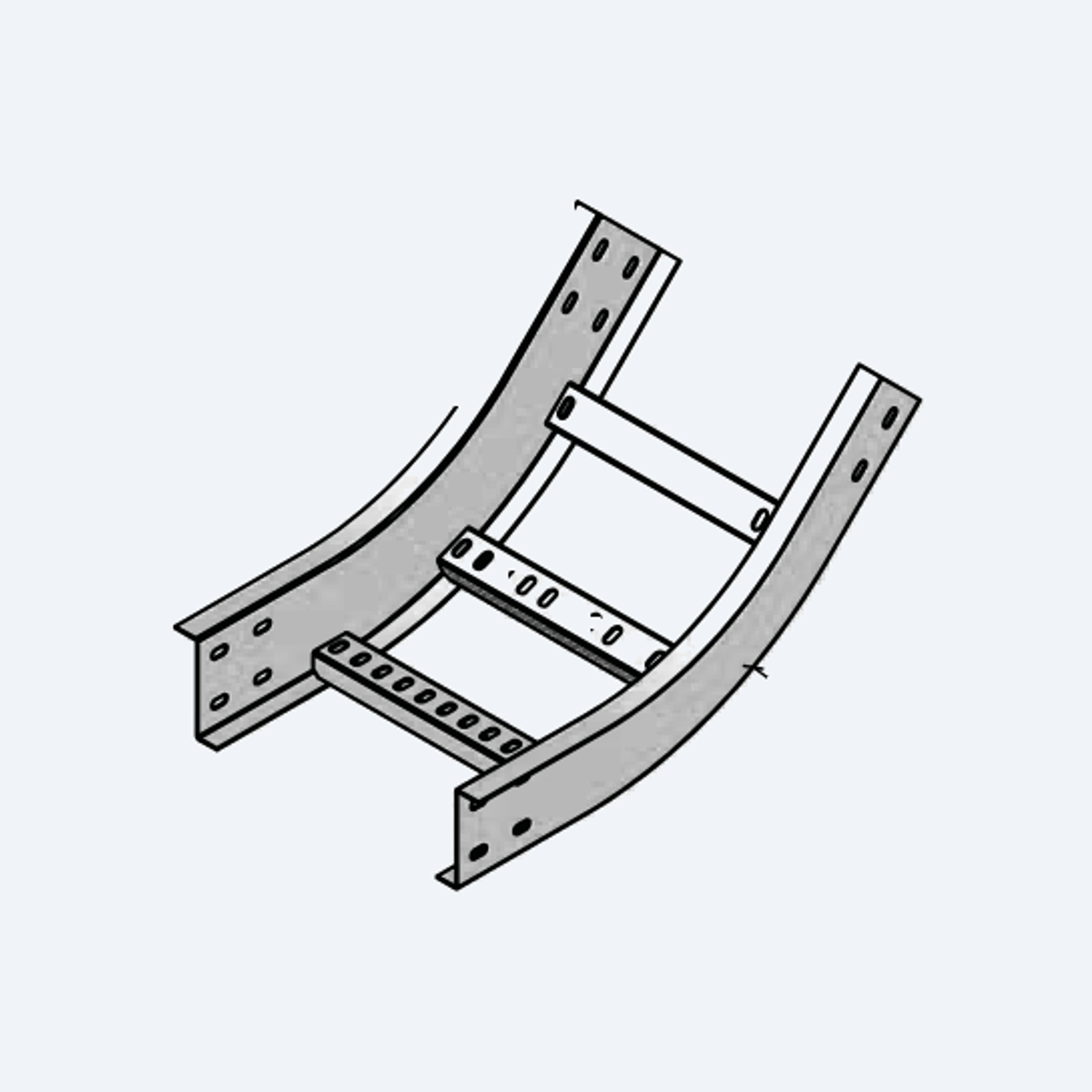

Inside riser: bends an AZL ladder run 45° in the vertical plane, with the cable side on the inside of the bend.

Rail height and width match the AZL straights, and it joins them with standard splice plates.

ExampleAZL100-IR45-100-1.5-R30-GLook up this code →

AZL100System and height: AZL system, 100 mm height

System letters, then the height in millimetres.

Published in 3 options. Select one to change the code.

72 shown

Displaying 1–10 of 72 item codes

Per page

Part number	Height (mm)	Width (mm)	Thickness (mm)	Finish	Weight (kg)
AZL100-IR45-100-1.5-R30-G	100	100	1.5	Hot-Dip Galvanized	1.87
AZL100-IR45-100-2-R30-G	100	100	2	Hot-Dip Galvanized	2.49
AZL100-IR45-125-1.5-R30-G	100	125	1.5	Hot-Dip Galvanized	1.93
AZL100-IR45-125-2-R30-G	100	125	2	Hot-Dip Galvanized	2.57
AZL100-IR45-150-1.5-R30-G	100	150	1.5	Hot-Dip Galvanized	1.99
AZL100-IR45-150-2-R30-G	100	150	2	Hot-Dip Galvanized	2.65
AZL100-IR45-200-1.5-R30-G	100	200	1.5	Hot-Dip Galvanized	2.10
AZL100-IR45-200-2-R30-G	100	200	2	Hot-Dip Galvanized	2.80
AZL100-IR45-300-1.5-R30-G	100	300	1.5	Hot-Dip Galvanized	2.33
AZL100-IR45-300-2-R30-G	100	300	2	Hot-Dip Galvanized	3.11
