AZL · E30

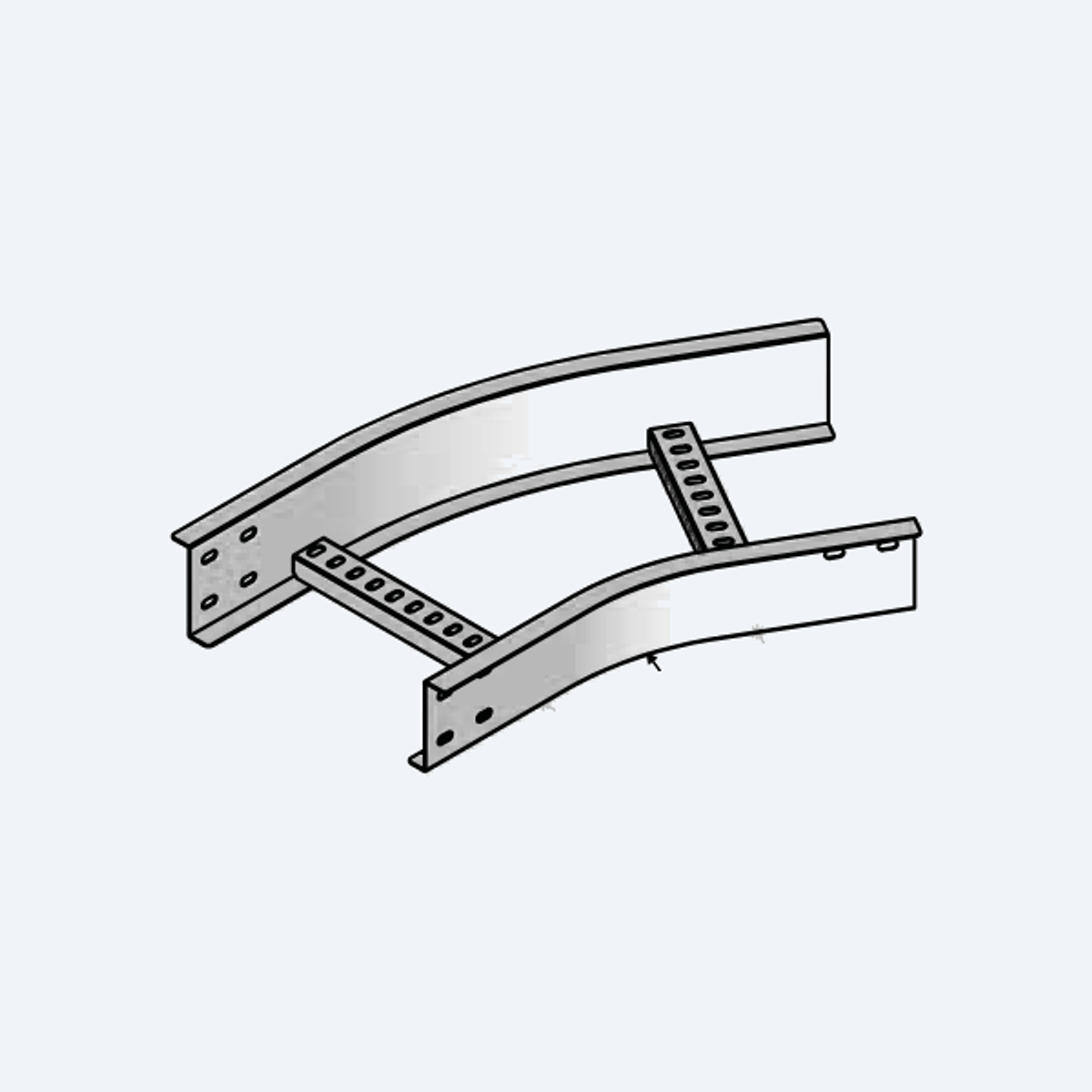

30° Elbow
Horizontal elbow for a 30 degree change of direction in an AZL run.
Photos & drawings
Published item codes
| Part number | Height (mm) | Width (mm) | Thickness (mm) | Finish | Weight (kg) | Enquiry |
|---|---|---|---|---|---|---|
| AZL100-E30-100-1.5-R30-G | 100 | 100 | 1.5 | Hot-Dip Galvanized | 2.41 | |
| AZL100-E30-100-2-R30-G | 100 | 100 | 2 | Hot-Dip Galvanized | 3.21 | |
| AZL100-E30-125-1.5-R30-G | 100 | 125 | 1.5 | Hot-Dip Galvanized | 2.51 | |
| AZL100-E30-125-2-R30-G | 100 | 125 | 2 | Hot-Dip Galvanized | 3.34 | |
| AZL100-E30-150-1.5-R30-G | 100 | 150 | 1.5 | Hot-Dip Galvanized | 2.60 | |
| AZL100-E30-150-2-R30-G | 100 | 150 | 2 | Hot-Dip Galvanized | 3.47 | |
| AZL100-E30-200-1.5-R30-G | 100 | 200 | 1.5 | Hot-Dip Galvanized | 2.80 | |
| AZL100-E30-200-2-R30-G | 100 | 200 | 2 | Hot-Dip Galvanized | 3.73 | |
| AZL100-E30-300-1.5-R30-G | 100 | 300 | 1.5 | Hot-Dip Galvanized | 3.21 | |
| AZL100-E30-300-2-R30-G | 100 | 300 | 2 | Hot-Dip Galvanized | 4.27 |
Not in the list?
Characteristics
| Model | AZL100, AZL125, AZL150 |
|---|---|
| Thickness | 1.5 / 2 mm |
| Radius | 300 mm |
| Material | G |
| Finish | G |
